Sunbird-hand launched rc glider for new player

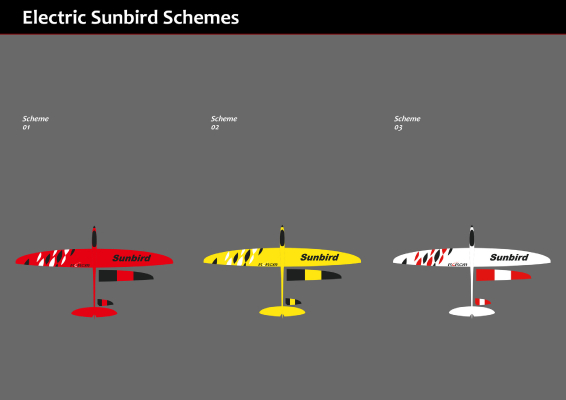

Electric Sunbird Available!!!

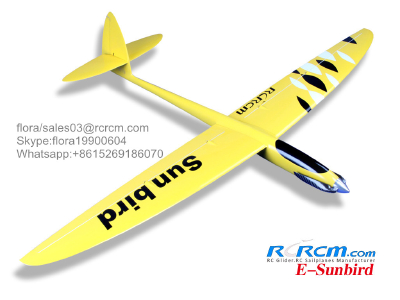

Sunbird 60” – a Lot of sailplane in a small attractive package

Produced from CAD design and CNC generated moulds, this little/big sailplane was designed with a range of possible flyers in mind from novice to expert.
I designed it to be very transportable – basically, disassembled it can fit on a car parcel shelf, so it is very convenient to carry around, but at the same time I wanted to make an airframe that in expert hands could really perform.
The aerofoil section is probably quite advanced for this kind of plane and gives a very wide speed range and possibility of operation in a wide range of wind conditions.
Sunbird flying panels and control surfaces are large enough to be effective in almost any conditions, while the flaps make it possible to land the plane slowly and safely even at small flying sites.
Added to that, the radio bay is large enough to enable installation of the servos and radio pack without resorting to micro surgery, while the fuselage and in fact the whole plane still has a pleasing and balanced shape. Remember: “If it looks good, it flies good” – and that really is true with this little whizzer.
Flight tests in a wide range of conditions have revealed a very good turn of speed, high maneuverability, no bad habits, and very controllable landing characteristics.
For the expert and novice alike the Sunbird represents a lot of “big” sailplane features in a small attractive package.

Specifications:
Wing span: 60” (1.52m)
Wing section: RC series
Length: 0.9m
Weight: 600g
Controls: Ailerons, Flaps, Elevator

Detailed Description:

• Sunbird flying panels and control surfaces are large enough to be effective in almost any conditions, while the flaps make it possible to land the plane slowly and  safely even at small flying sites.

• Flight tests in a wide range of conditions have revealed a very good turn of speed, high maneuverability, no bad habits, and very controllable landing characteristics.

• Clean, efficient designs are sure to satisfy the most demanding pilots.

• For the expert and novice alike the Sunbird represents a lot of “big” sailplane features in a small attractive package.

• Control Surfaces: Rudder, Elevator, Ailerons and Flaps

• Two-piece hollow molded composite Carbon Fiber or Glass wing design

• Carbon Fiber reinforced wing with square wing joiner

• Live hinges on the wing and rudder with pre-installed wipers

• Smooth, gel-coated finish with pre-painted graphics

• Full flying stabilizer with pre-installed bellcrank with pushrod

wingspan:                       1530mm

length:                            890mm

Flying Weight:                 N/A

Empty Weight:                Fiberglass Carbon Standard Version:550g
Full Carbon Version: 640g

CG：center of Gravity    60-65 mm from leading edge

Servos for wings             KST DS245H*4

Servos for fuselage        KST DS215MG*2

Required Battery            3S 11.1V 1500mah 25c

Power System                LC2835-KV850

Motor Mount Dia.          35mm

Electronic Speed Control  SkyWalker-40A

Fairing size                     38mm

Propeller/EDF                10*5.5
