DESCRIPTION：

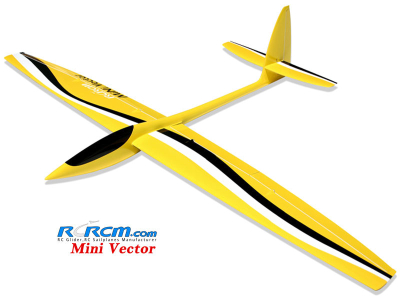

RCRCM 1690mm Wingspan Aerobatic Glider – MINIVEC

Following the enormous success of our Vector– now a classic we decided to go a step further yet back with the Vector Mini – or to give it a buzz name MINIVEC!

Designed to have all the plus points of its dad-the Vector and none of the niggles, our designer decided to go the whole hog and give it a whole new look.

So what’s so special? The wings and tail planes have been curved yet retain the classic Vector look, the fuselage is softened with a larger, more curvaceous fin and the ballast now sits in the wings. Basically the clean design, affordability and plain good looks make this a plane that anybody would want in their stable.

Performance? Well for something that breaks down into a package that can easily be taken anywhere, the flight performance is simply stunning – period. Any aerobatic maneuver that is possible for a sailplane to perform is accomplished with ease. This is simply an affordable bundle of fun with a cool new look that we hope will become as much of a classic as its dad-Vector.

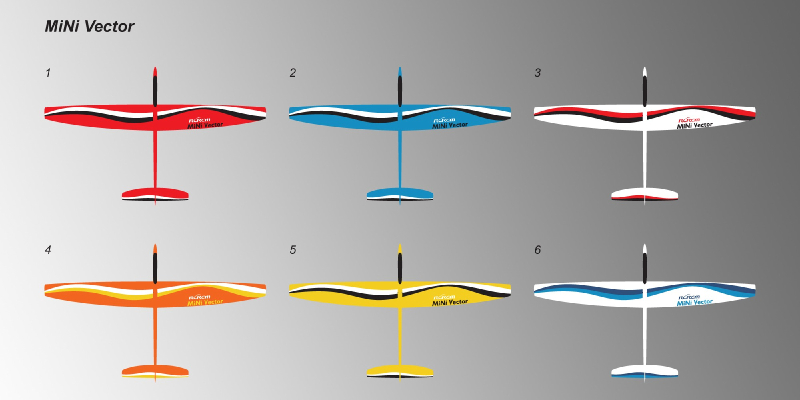

Available in 4 Versions:

Fiberglass Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives adequate stiffness and torsion stability with lower weigh and cost. Highly recommended for sport flying.

Full Carbon Version: Wings built using full carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. Besides, we have Light Carbon Version(less weight) and Double Carbon Version(with two layers of carbon), the last two versions are customized.

Features:.

Control Surfaces: Rudder, Elevator, Ailerons and Flaps

Two-piece hollow molded composite Carbon Fiber or Glass wing design

Carbon Fiber reinforced wing with square wing joiner

Live hinges on the wing and rudder with pre-installed wipers

Smooth, gel-coated finish with pre-painted graphics

Full flying stabilizer with pre-installed bellcrank

Includes:

1690mm Wingspan Glider – Minivector

Ballast Tub(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate

Preferences                            Motorless

wingspan:                               1690mm

length:                                    1070mm

Flying Weight:                         N/A

Empty Weight:                        Fiberglass Carbon Standard Version:720g

Full Carbon Version: 830g

CG：center of Gravity            72 mm from leading edge

Tow hook setting                    NO

Ailerons                                  YES

Elevator                                  YES

Rudder                                   YES

Flaps                                      YES

Required Radio                       no less than 7 channels

Recommend equipment configuration for a motorless version  basic configuration

Servos for wings                     KST DS135MG*4

Servos for fuselage                 KST DS215MG*2

Required Battery                    4.8-6V
